Urb-IoT Edge Node Datasheet
Urb-IoT Edge Node – Technical Datasheet
·
Operating temperature: −20°C to +85°C
·
Humidity: 0–95% non‑condensing.
·
Shock-resistant polycarbonate housing.
·
Internal 60.48Wh battery for up to 72 hours of autonomy, which can be charged using our solar panel or our IPS, designed with high-temperature range requirements.
·
Designed for autonomous operation using only solar energy.
·
Battery charging temperature range: 0°C - 60°C
Power consumption data
Interface | Average(W) | Peak(W) |
Public LTE/2G interface, connected, LTE or EDGE | 3.1 | 9 |
Satellite interface data transmitting | 0.95 | 7.5 |
LoRaWAN continuous receiving | 0.63 |
|
*To maintain the IP68 ingress protection level, install only with the cables supplied.
Transmission output power of public LTE/2G interface
Band | Mode | Class | Nominal RF power (dBm) |
850/900MHz | GSM/GPRS | 4 | 32.5 |
EGPRS | E2 | 27 | |
1800/1900MHz | GSM/GPRS | 1 | 29.5 |
EGPRS | E2 | 26 | |
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85, B8_39d | (LTE)CAT-M1 | 3 | 23 |
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85, B86, B8_39d | (LTE)CAT-NB2 | 3 | 23 |
B71 | (LTE) CAT-NB2 | 5 | 21 |
Input voltage range: DC 5.6-13.3V
Power output for sensors: DC 24V, 200 mA maximum; internal PTC protection.

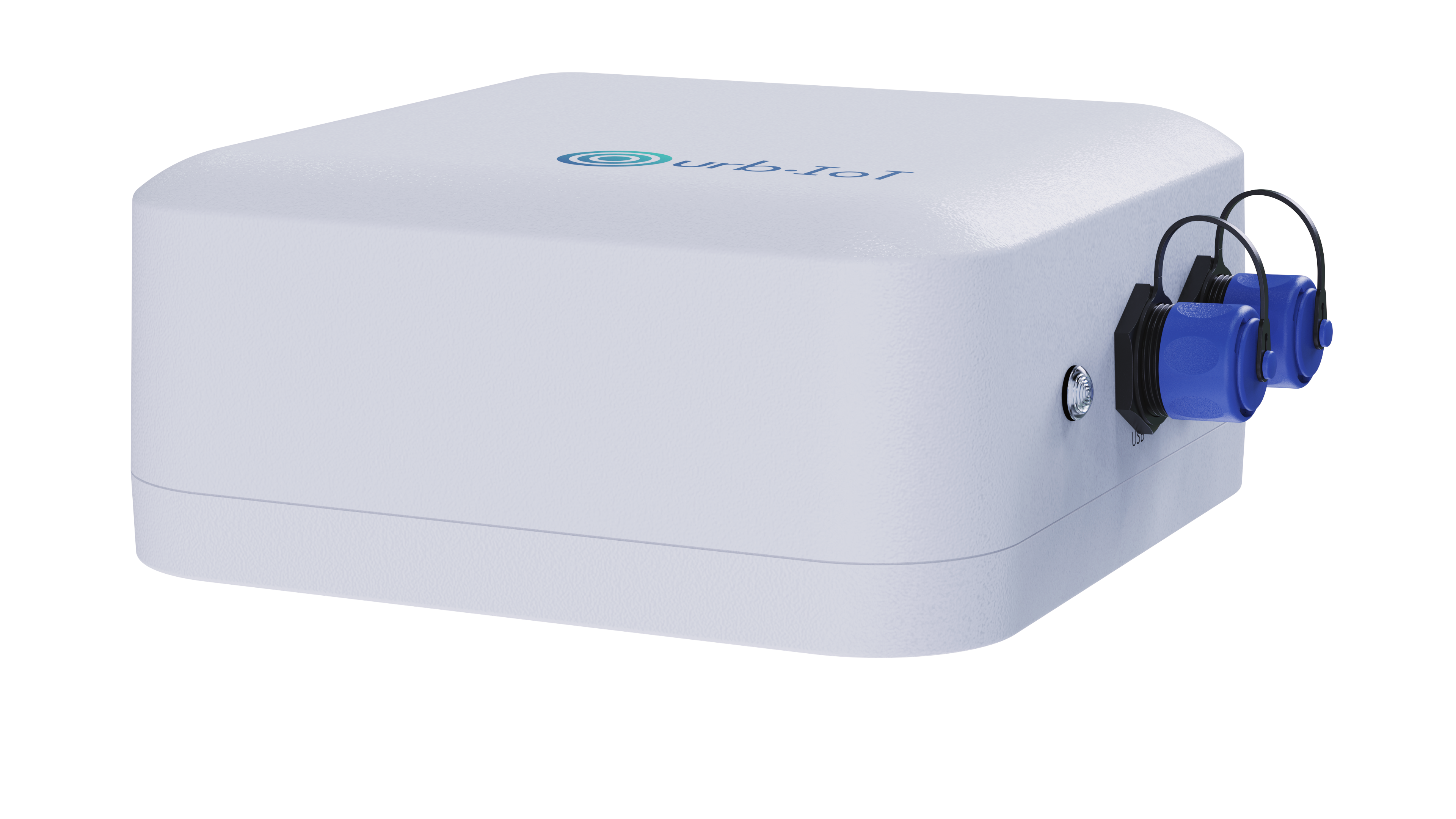

Front panel
On the front panel, an LED indicates the Edge Node's status. It is useful during installation to have feedback from the connection with the power source.
·
Solid green light: Battery is fully charged.
·
Solid red light: Battery level below 10%.
·
Green blinking: The battery is charging.
·
Blue blinking: The Edge Node detects the incoming power, but the battery is not charging due to low voltage or insufficient current. Also, blue blinking indicates booting after a restart.
·
One second of blue light every minute: The Edge Node operates on a battery.
Next to the LED indicator is an IP68-rated USB Type-C connector for terminal communication and power input.
Finally, another IP68 connector for sensor supply, RS-232, and 4-20mA interface.

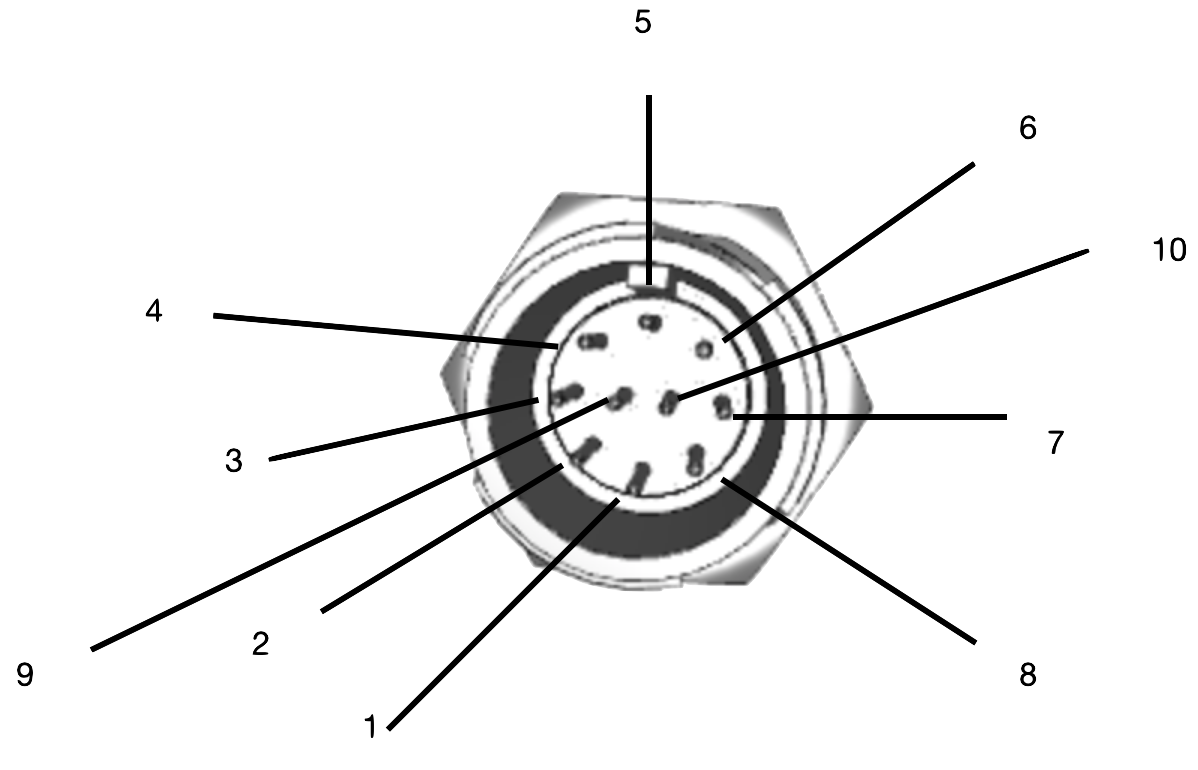

Figure 1: Auxiliary connector
Pin number | Function |
1 | 4-20mA interface 1 +24V out |
2 | GND |
3 | GND |
4 | GND |
5 | 4-20mA interface 2 +24V out |
6 | RS-232 RX |
7 | +24V out |
8 | RS-232 TX |
9 | 4-20mA interface 0 |
10 | 4-20mA interface 1 |
Accessories
Accessories are optional add‑ons and must be ordered independently from the Edge Node.

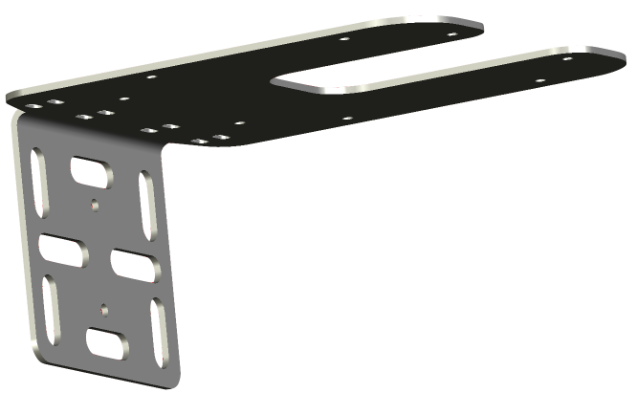

Figure 2: mounting kit.
Solar panel
10W Solar panel equipped with the mating USB Type-C connector.
Electrical details:
·
Peak power: 10W,
·
Peak voltage: 9V
·
Type: mono-crystalline
Dimensions: 190x350x18mm
Operating temperature: -40°C to +90°C.

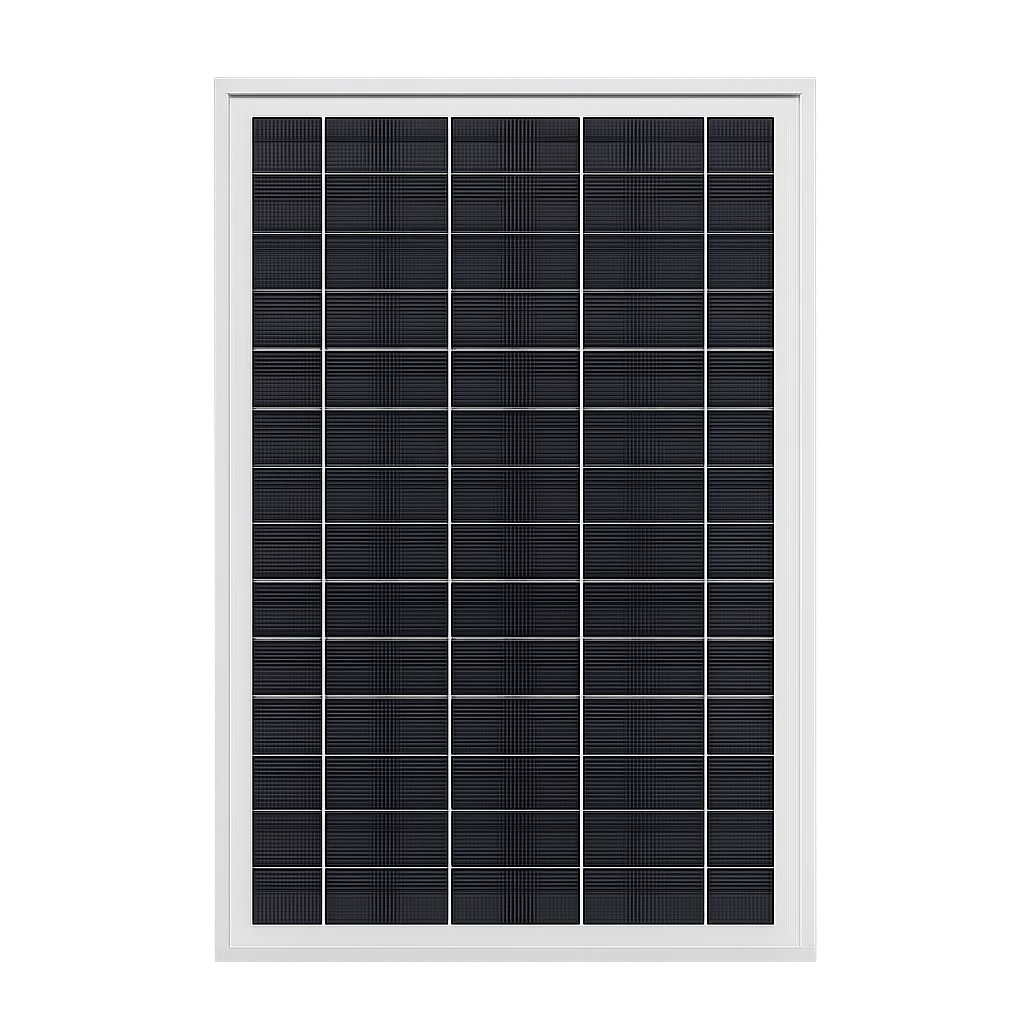

Figure 3: Solar panel
Industrial power supply
The industrial power supply comes with the mating IP68 USB Type-C connector for the Edge Node and a single cable end for local electrical installation.
Electrical details:
·
Input: AC 80-275V 0.5A 50-60Hz
·
Output: DC 12V Max 15W
·
Fuse protected
Operating temperature: -40°C to +85°C.

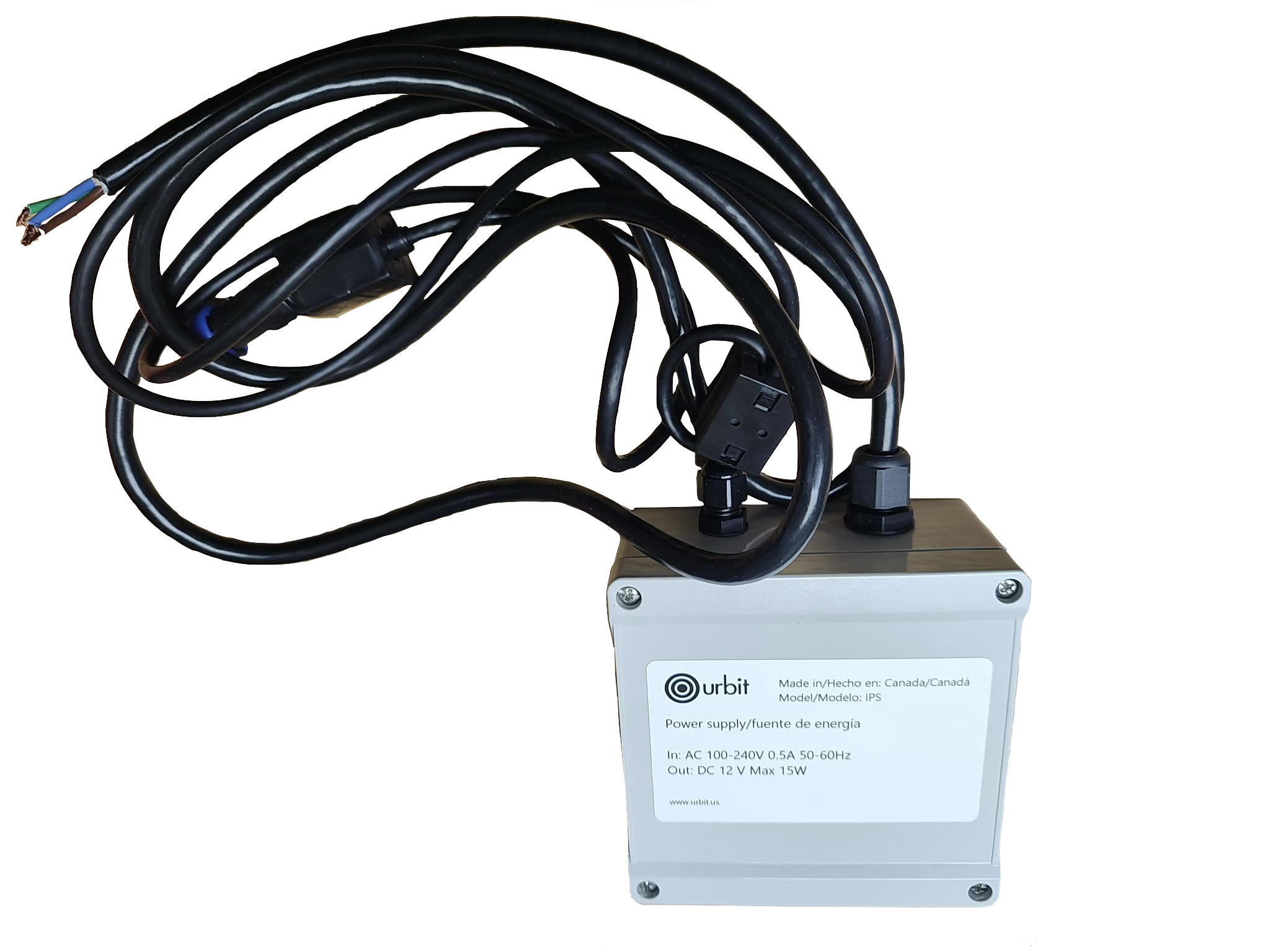

Figure 4: Industrial Power Supply
If a connector is not used, the corresponding cap must be tightened to prevent dust and moisture contamination.
The mounting location is critical to ensure safe installation and reliable operation. For reliable operation and optimal satellite performance, the installer should consider the following guidelines:
The location must provide a safe, secure installation to prevent collisions or blockages that could interfere with the Urb-IoT Edge Node or solar panel.
The Urb-IoT Edge Node is not intended to be operated near a person. Always ensure it is mounted more than 20 cm from people to comply with RF exposure limits.
Do not install the Urb-IoT Edge Node inside a building, under metal surfaces, or next to solid or dense objects (e.g., lush trees).
Requires a 360-degree view of the sky to be able to sustain a continuous connection to the satellite.
Select a flat, horizontal mounting location for optimal uniform satellite performance.
**The Urb-IoT Edge Node must be placed with the logo facing upward.
Consult your sensor User Guide to understand sensor coverage and transmission distance based on the protocol used. Make sure the Urb-IoT Edge Node is installed within the area needed (Wi-Fi = Up to 40m, BLE = Up to 10m, LoRaWAN® = Up to 6km)

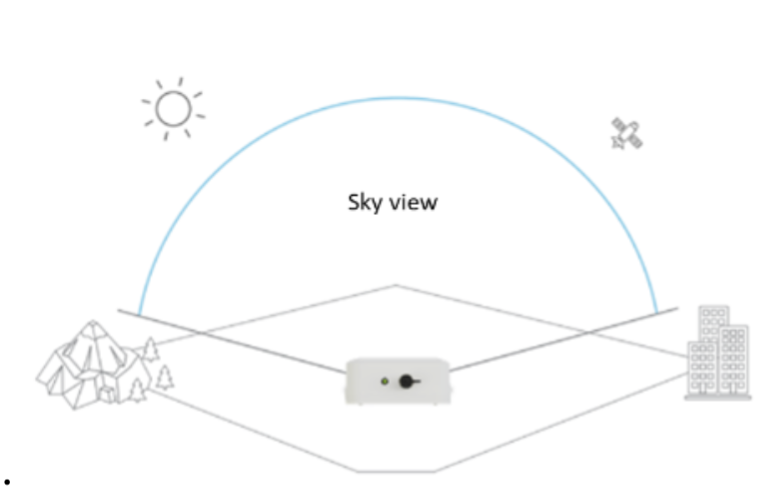

Figure 5: Field installation
Mounting the Urb-IoT Edge Node
Urb-IoT Edge Node can be mounted to objects using #8 pan head screws, as shown below, or to a pole using a pole mount accessory (not included)
Figure 6: Heavy-duty mount
Figure 7: Pole Mount
Heavy-duty mount:
Install mounting feet to the enclosure using the supplied screws with a torque of 100 - 110 cN-m (8.8 - 9.7 lbf-in).
Mount enclosure object using #8 pan head screws (not included).
NOTE: The Urb-IoT Edge Node logo must be facing the sky
Pole Mount:
Secure the Urb-IoT Edge Node to the panel mount accessory using a screw, washer & postnut.
Attach the Urb-IoT Edge Node to the vertical pole, loosely assemble the U-Bolts or Pipe Clamp to the brackets, and tighten once the highest possible height is reached.
If you are using a solar panel, it must be placed below the Urb-IoT Edge Node. Avoid overshadowing the panel with the equipment. NOTE: DON’T BLOCK THE SKY VIEW WITH THE SOLAR PANEL. PLACE IT BELOW THE URB-IOT EDGE NODE

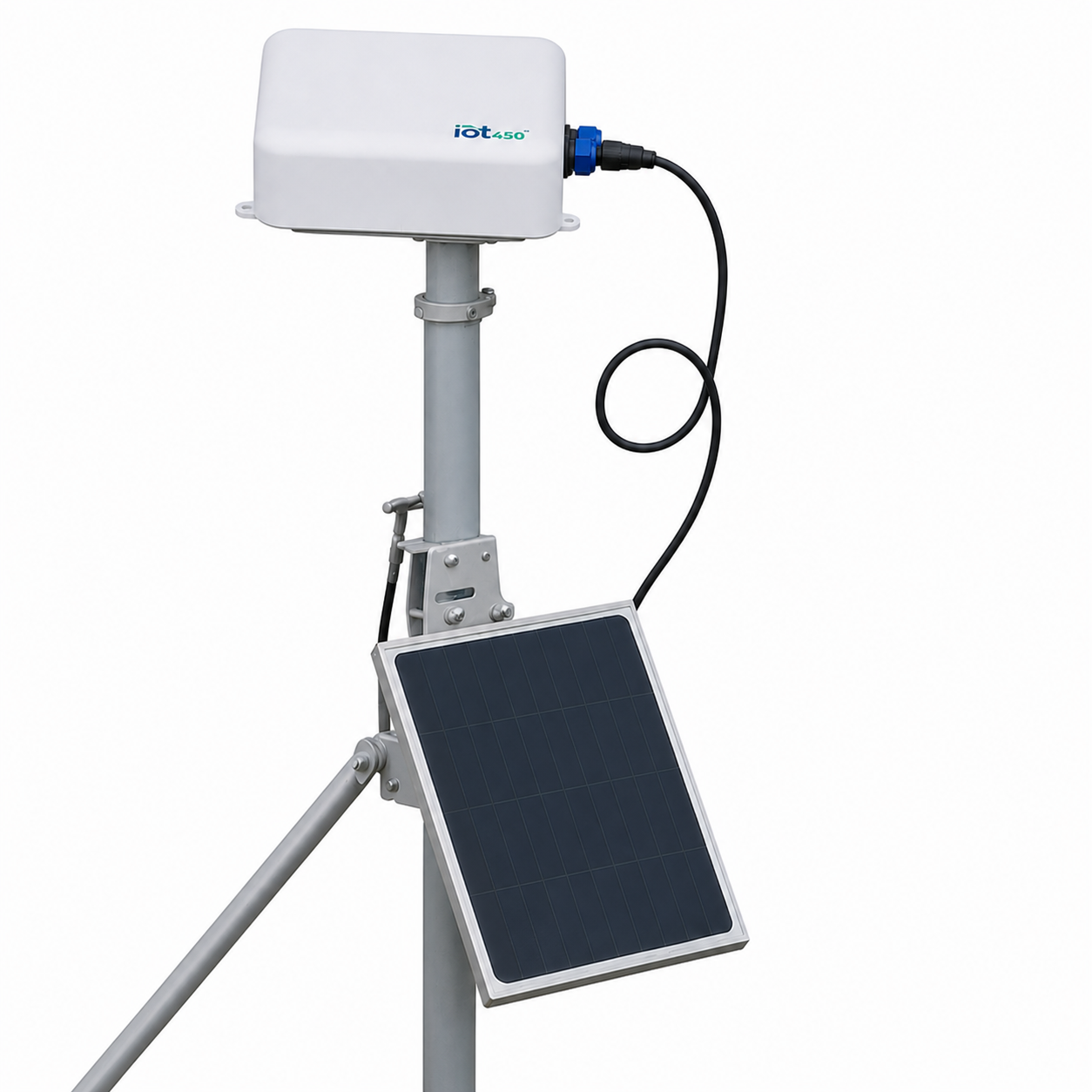

Figure 8: Urb-IoT Edge Node and Solar Panel
·
Consider that the Wi-Fi, BLE, LoRa, and Cellular antennas are inside the Urb-IoT Edge Node enclosure.
·
Don’t block the Urb-IoT Edge Node with the post or any other large (metallic) structure.
·
Be sure sensors are placed in a general line of sight of the Edge Node and face the LoRa Antenna to the LoRa sensors.

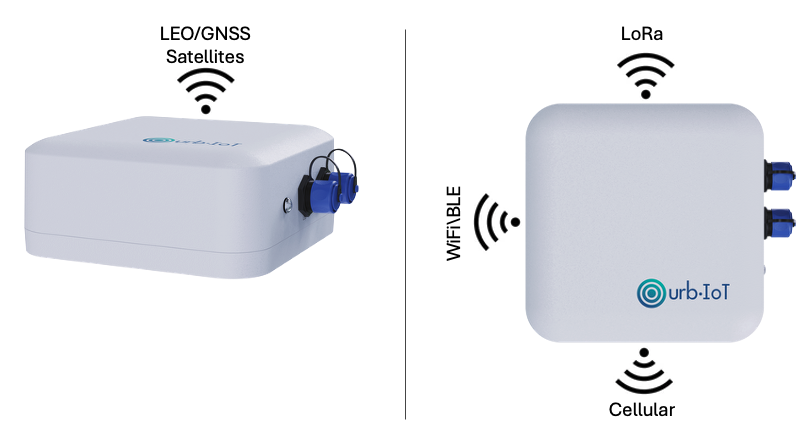

Figure 9: Urb-IoT Edge Node Antennas Location

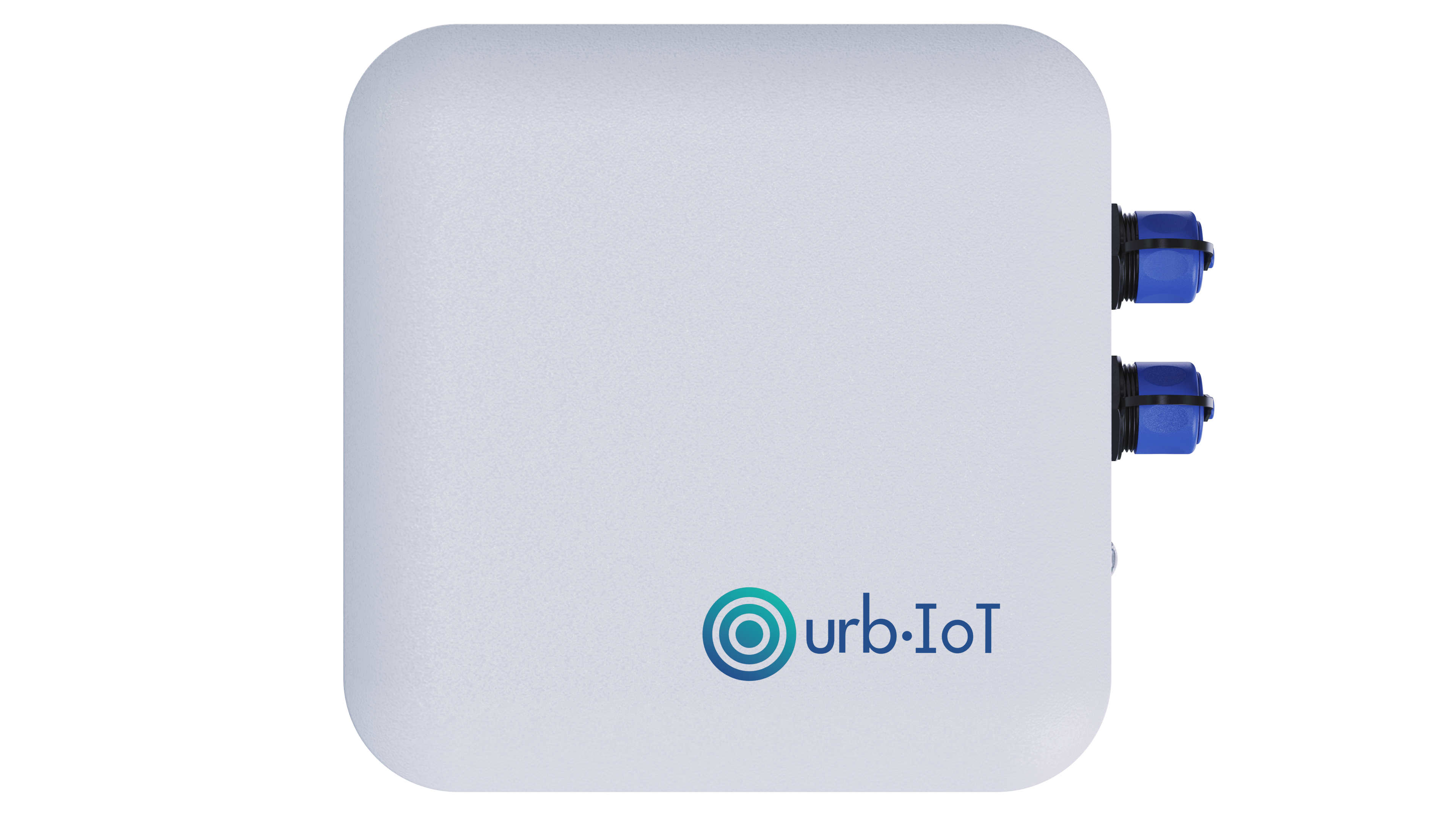

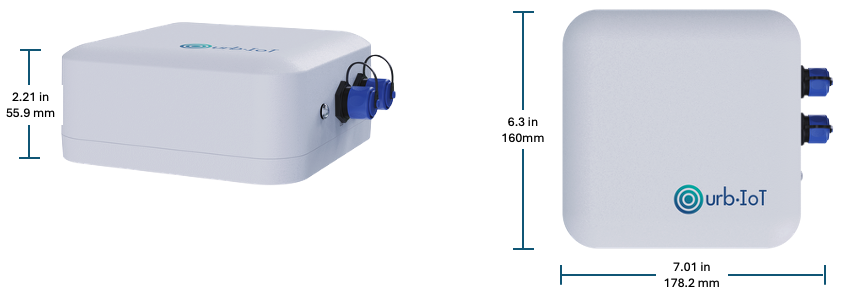

Dimensions | • 6.3 in (W) x 7.01 in (L) x 2.2 in (H) • 160 mm (W) x • 178.2 mm (L) x 55.9 mm (H) |
Weight | • ∼900g / ∼2lbs |
Contact information and ordering
Have more question?
Visit us at: https://urbit.us
Telephone: +1 210 343 2170
E-mail: info@urbit.us
in
Urbit Group LLC holds all rights to this document and the information it contains. Products, names, logos, and designs mentioned in this document may be subject to intellectual property rights.
The information provided here is offered without any warranties, either express or implied. Urbit Group LLC makes no guarantees regarding the accuracy, reliability, suitability for a specific purpose, or content of this document. Urbit Group LLC reserves the right to revise this document at any time.
Last modified: May 2026
